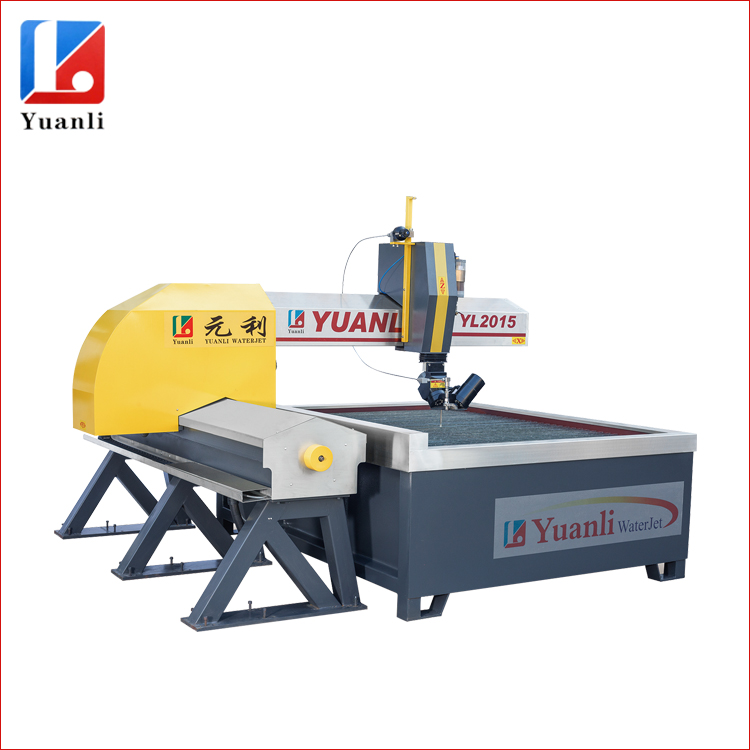

High Accuracy Water Jet 3 Axis Cutting Machine 30KW 37KW CNC Stone Cutting Machine

Name: High Accuracy Water Jet 3 Axis Cutting Machine 30KW 37KW CNC Stone Cutting Machine
Brand: Yuanli
Price: 26 USD

China High Accuracy Water Jet 3 Axis Cutting Machine 30KW 37KW CNC Stone Cutting Machine wholesale

Place of Origin : Guangdong, China

Brand Name : Yuanli

Packaging Details : 1.Whole film packaging machine.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.Avoiding all damages that could happen in the delivery process.
3.Anti-collision package edge.

Supply Ability : 100 Set/Sets per Month

Price : $26,000.00 - $110,000.00/sets

Applicable Industries : Manufacturing Plant

Showroom Location : Germany, Viet Nam, Indonesia, Spain

Condition : New

Type : Stone Cutting Machine

Production Capacity : 1000sets/years

Voltage : 220V 380V, 220V/380V/415V

Power : 30 37KW, 50/60HZ

Dimension(L*W*H) : 4200*3600MM

Weight : 3.9 kg

Warranty : 1 Year, 12 Months

Key Selling Points : High-accuracy

Cutting thickness (max) : 120mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC

CNC control system : AC servo system

cutting accuracy : ±0.1mm

repeatability : ±0.01mm

Fast positioning accuracy : ±0.025mm

Structure : Cantilever

Traverse Angle : 6000 mm/min

Port : Guangzhou/Shenzhen

Contact Now

hot sale high quality factory price water jet stone cutting machine

Features Of Product:

1. It has the cutting ability of full direction ,can carry out any plane curve cutting.

2.The structure of platfrom is specially reinforced,it will not be shaking when the cutting head is running,and the cutting speed is fast and the precision of machining is strong.

3.The screw mandrel and the lead rail are provided by taiwan's manufacturers,the X axis and the Y axis with the oil-immersed,it has the effect of lubricating,with the structure of water-proof and dustproof,can make sure the machining precision of cutting platfrom,and improve the lifetime of the screw mandrel and lead rail.

4.The cutting head is equipped with the pneumatic water switch that can improve the productive efficiency.

5.The stainless steel protection cover is dust-proof,waterproof,rustproof,erosion proof,making the platform bright all year.

After-Sale Services

1.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.

Item		Water jet stone cutting machine
Model		YL2515
Structure		Cantilever
Cutting table size		2600*1600mm
Stroke	X-axis	2500mm
	Y-axis	1500mm
	Z-axis	150mm
CNC Controller		Step System / AC Servo System
Accuracy		±0.1mm
Cutting	Repeatability	±0.05mm
	Traverse speed	6500/15000 mm/min
Power supply		220V/380V/415V AC,50Hz
Turbocharger parameters
Item	Waterjet cutting machine
Model
Maximum pressure	450Mpa
Normal operating pressure	350-380Mpa
Main motor power	37KW /30KW
Gantry	Variable
Cooling	Wind/Oil/Water
High-pressure cylinder	Imported
Inlet valve	Imported
Ceramic rod	Imported
Accumulator	Single taper
Power supply	415/380/220V AC 3P
